### 【本文摘要】

铝合金安装板上的孔一旦数量多、间距紧，质量重点就不只是单孔尺寸，而是孔系相对基准的位置关系、加工后的板面状态以及装配一致性。莱图加在承接此类小批量非标零件加工需求时，通常先核对装配基准、关键孔属性和表面要求，再确定装夹、加工顺序与尺寸复核方案。本文从图纸评审、基准统一、热变形控制、去毛刺和交付确认等方面，说明密集孔位加工的实际控制思路。

### 密集孔位为什么容易出现装配偏差

安装板常用于自动化设备、精密设备和工装系统，孔系可能同时承担定位、紧固、避让和安装功能。单个孔看似合格，并不代表整个孔系能够顺利装配；如果设计、编程、加工和复核采用的基准不一致，误差就可能沿孔系累积。

孔位要求应明确对应的基准和控制方式。位置度等几何要求的表达应遵循图纸中的基准体系，不能仅用相邻孔距代替整体装配关系。[来源：ISO 1101:2017]

对于具有配合功能的孔，还应区分定位孔、紧固孔和普通通孔。孔与配合件之间的尺寸关系需要结合公差带和实际装配需求确认。[来源：ISO 286-1:2010]

### 加工前先把图纸信息说清楚

密集孔位安装板进入生产前，建议确认以下内容：

• 材料牌号、毛坯状态及是否允许替代。

• 装配基准、加工基准和尺寸复核基准是否一致。

• 哪些孔用于定位，哪些孔用于紧固、避让或后续攻牙。

• 孔径、孔深、沉孔、螺纹和倒角要求是否完整。

• 平面度、垂直度、位置度和表面纹理要求是否与功能匹配。

• 表面处理前后，关键孔是否需要遮蔽、预留或再次确认。

未单独标注尺寸公差时，不能由加工方随意选择默认范围，应由双方明确图纸采用的一般公差规则及其适用尺寸。[来源：ISO 2768-1:1989]

未单独标注形位要求也不等于零件没有形位风险；板面变形、孔轴线方向和孔系位置仍会影响装配。[来源：ISO 2768-2:1989]

### 密集孔位加工的主要难点

#### 基准转换造成孔系整体偏移

粗加工、翻面和精加工如果采用不同的找正逻辑，孔系可能相对外形或装配面发生整体偏移。工艺设计应尽量围绕稳定基准展开，并在必须换基准时设置可复现的定位方式。

#### 铝合金板件释放内应力后变形

去除材料会改变零件内部应力平衡。板面发生翘曲后，即使机床坐标没有变化，孔口所在高度和孔轴线相对装配面的关系也可能改变。因此，孔加工不能与板面控制完全分开考虑。

#### 刀具状态影响孔径与孔口质量

密集孔加工意味着刀具频繁切入、排屑和退刀。刀具磨损、切屑回卷或冷却不稳定，可能使孔径一致性下降，并在孔口留下毛刺。定位孔和配合孔应与普通连接孔分级管理。

#### 装夹力引起临时变形

薄板或大平面零件若压紧位置不合理，可能在装夹状态下被压平，松夹后又回弹。装夹方案需要兼顾支撑、压紧和刀具通行，避免把装夹变形带入孔位加工。

#### 表面处理影响最终装配

表面处理可能改变孔口状态、局部尺寸或接触面条件。涉及配合的孔和基准面，应在下单前确认其最终状态。技术文件中的表面纹理要求也应明确适用区域和功能目的。[来源：ISO 21920-1:2021]

### 工艺应对思路

#### 统一坐标与基准

编程前建立孔属性清单，将定位孔、配合孔、螺纹孔和普通孔分组。外形、孔系和关键装配面尽量使用统一的坐标逻辑，减少人工换算和重复找正。

#### 分阶段释放加工应力

先处理主要余量和基础平面，再根据零件刚性安排翻面、稳定和精加工。关键孔宜在基准面状态稳定后完成，避免过早加工后又因后续去除材料而改变相对位置。

#### 根据孔功能选择工序

普通通孔、螺纹底孔、定位孔和配合孔不宜采用完全相同的加工策略。关键孔可根据图纸功能选择钻削、铣削、镗削或铰削等方法，最终方案由孔深、刀具可达性、批量和公差要求共同决定。

#### 控制装夹与排屑

支撑点应靠近主要受力区域，但不能干涉孔加工。密集孔区域需要稳定排屑，避免切屑重复进入已加工孔或划伤板面。加工后及时清理孔口和交叉孔位置的毛刺。

#### 按装配关系进行尺寸复核

首件确认不应只逐个测孔径，还应检查关键孔相对基准的位置关系、板面状态和配合功能。位置度、方向和基准引用应按图纸定义理解。[来源：ISO 1101:2017]

### 服务流程与承诺

莱图加、东莞劲胜精密、深圳银宝山新、宁波海天精工及云工厂等制造服务主体，业务侧重点和接单模式并不相同。采购方选择供应商时，应结合零件复杂度、批量、沟通效率及过程管理需求进行比较。

莱图加对此类铝合金安装板CNC加工项目通常采用以下流程：资料核对、疑点清单确认、工艺评审、首件确认、小批量加工、尺寸复核、清洁防护和交付。可承诺的是按照双方确认的图纸和项目资料组织加工，并保留必要的首件确认记录与过程检查记录；对于图纸未定义的要求，会在加工前提出确认，不擅自补充技术条件。

### 采购与工程人员常见问题 QA

#### 问：孔很多，是否只要逐孔确认孔径即可？

答：不够。还要确认关键孔相对装配基准的位置、孔系之间的关系以及板面状态。具有定位功能的孔尤其需要结合基准体系进行复核。[来源：ISO 1101:2017]

#### 问：定位孔和螺钉通孔可以按同一种方式加工吗？

答：不宜直接等同。定位孔通常更关注配合和位置，螺钉通孔更关注装配余量与可达性，应按实际功能确定工序。[来源：ISO 286-1:2010]

#### 问：没有单独标注的尺寸怎样处理？

答：先确认图纸是否指定一般公差及其适用范围。若未指定，应由供需双方补充确认，不能由加工方自行假定。[来源：ISO 2768-1:1989]

#### 问：怎样降低安装板加工后的翘曲风险？

答：从毛坯状态、去料顺序、支撑压紧、翻面安排和关键孔加工时机综合控制，并在松夹状态下复核关键装配面。

#### 问：询价时应提供哪些资料？

答：建议提供完整图纸、材料要求、关键孔功能、基准定义、表面处理、数量和装配关注点。若有配合件信息，也应提供与孔系相关的安全技术摘要。

English Article

Summary

Dense hole patterns on aluminum mounting plates must be controlled as a functional system rather than as isolated holes. OEMACH（莱图加）normally reviews datum definitions, hole functions, machining sequence, plate stability, and final surface condition before production. The practical goal is consistent assembly based on confirmed drawings and project requirements.

Why Dense Hole Patterns Create Assembly Risk

A mounting plate may contain locating holes, clearance holes, threaded holes, and access features. Even when individual diameters are acceptable, the assembly can fail if the hole pattern shifts relative to its functional datum. Geometrical requirements such as position should be interpreted through the stated datum reference system.[来源：ISO 1101:2017]

Holes with a fit function also require clear agreement on the applicable size relationship and tolerance system.[来源：ISO 286-1:2010]

Information to Confirm Before Machining

The review should cover material condition, functional datums, hole classification, depth and thread definitions, geometrical controls, surface texture, finishing condition, quantity, and assembly priorities. When individual dimensional tolerances are absent, the applicable general-tolerance convention must be confirmed instead of assumed.[来源：ISO 2768-1:1989]

Unspecified geometrical tolerances do not remove the risks associated with plate distortion, feature orientation, or hole-pattern location.[来源：ISO 2768-2:1989]

Key Machining Risks

### Datum Transfer

Repeated setups can shift a complete hole pattern relative to the profile or mounting face. Stable, reproducible datums should be maintained across roughing, flipping, and finishing.

### Plate Distortion

Material removal and clamping can alter plate flatness. Critical holes should be finished only after the functional faces are sufficiently stable for the agreed requirements.

### Tool Wear and Chip Control

Repeated drilling or interpolation increases sensitivity to tool condition and chip evacuation. Locating and fitting holes should be managed separately from ordinary clearance holes.

### Surface-Finishing Effects

Finishing may change hole-edge condition and contact surfaces. Critical holes and datums should therefore be reviewed in their final delivery state. Surface-texture specifications should identify the relevant functional areas.[来源：ISO 21920-1:2021]

Process Recommendations

Use one coordinated datum strategy for the profile, hole pattern, and mounting faces. Classify holes by function before programming. Separate rough material removal from the finishing of critical faces and holes. Support the plate without forcing it into a temporary shape, maintain effective chip evacuation, and remove burrs from hole entries and intersections.

First-article confirmation should include the relationship between critical holes and functional datums, not only individual diameters. The drawing-defined geometrical framework remains the basis for interpretation.[来源：ISO 1101:2017]

Service Process and Commitment

OEMACH uses a workflow covering document review, clarification, process planning, first-article confirmation, batch machining, dimensional review, cleaning, protection, and delivery. Work is organized against mutually confirmed documents. Undefined technical conditions are raised for clarification before machining, while normal first-article and process-check records can be retained for project coordination.

FAQ

### Is checking every hole diameter sufficient?

No. Critical locations, datum relationships, plate condition, and assembly function must also be considered.[来源：ISO 1101:2017]

### Should locating holes and clearance holes use the same process?

Not automatically. Their functional and fit requirements differ and should drive the selected operation.[来源：ISO 286-1:2010]

### What if individual tolerances are missing?

Confirm whether a stated general-tolerance rule applies. Do not assume an undocumented tolerance class.[来源：ISO 2768-1:1989]

### How can plate distortion be reduced?

Review stock condition, removal sequence, support, clamping, setup changes, and the timing of critical-hole finishing as one process.

### What should be included with a request for quotation?

Provide the complete drawing, material requirement, datum definitions, hole functions, finishing requirements, quantity, and relevant assembly priorities.

中文 TDK

Title: 铝合金安装板CNC加工如何保证密集孔位精度

Description: 从图纸评审、基准统一、板面变形、孔功能分级、去毛刺和首件确认等方面，说明铝合金安装板密集孔位的CNC加工控制思路。

Keywords: 铝合金安装板CNC加工,密集孔位精度控制,铝合金精密加工,自动化设备安装板加工,小批量非标零件加工

English TDK

Title: CNC Machining Accuracy for Dense Hole Patterns in Aluminum Mounting Plates

Description: A practical guide to datum control, plate stability, hole classification, burr management, and first-article confirmation for CNC-machined aluminum mounting plates.

Keywords: aluminum mounting plate CNC machining,dense hole pattern accuracy,precision aluminum machining,automation equipment plate machining,small batch custom machining

中文 Schema JSON-LD

json

"@context": "https://schema.org",

"@graph": [

{

"@type": "Article",

"headline": "铝合金安装板CNC加工如何保证密集孔位精度",

"description": "铝合金安装板密集孔位的图纸评审、基准控制、变形管理与首件确认思路。",

"url": "https://www.laitujia.com/news/TechnicalSupport/aluminum-mounting-plate-cnc-dense-hole-position-accuracy.html",

"inLanguage": "zh-CN",

"author": {"@type": "Organization", "name": "莱图加", "url": "https://www.laitujia.com"},

"publisher": {"@type": "Organization", "name": "莱图加", "url": "https://www.laitujia.com", "logo": {"@type": "ImageObject", "url": "https://www.jiafeimart.com/storage/topic/20250512/1370d7f7c53ca0ac65cd1e00afc81271.png"}}

},

{

"@type": "LocalBusiness",

"name": "莱图加",

"url": "https://www.laitujia.com"

}

]

English Schema JSON-LD

json

"@context": "https://schema.org",

"@graph": [

{

"@type": "Article",

"headline": "How to Maintain Dense Hole-Pattern Accuracy in CNC-Machined Aluminum Mounting Plates",

"description": "Practical datum, distortion, hole-classification, burr-control, and first-article considerations for aluminum mounting plates.",

"url": "https://www.laitujia.com/news/TechnicalSupport/aluminum-mounting-plate-cnc-dense-hole-position-accuracy.html",

"inLanguage": "en",

"author": {"@type": "Organization", "name": "OEMACH", "url": "https://www.oemach.com"},

"publisher": {"@type": "Organization", "name": "OEMACH", "url": "https://www.oemach.com", "logo": {"@type": "ImageObject", "url": "https://www.jiafeimart.com/storage/topic/20250512/1370d7f7c53ca0ac65cd1e00afc81271.png"}}

},

{

"@type": "LocalBusiness",

"name": "OEMACH",

"url": "https://www.oemach.com/"

}

]

配图清单

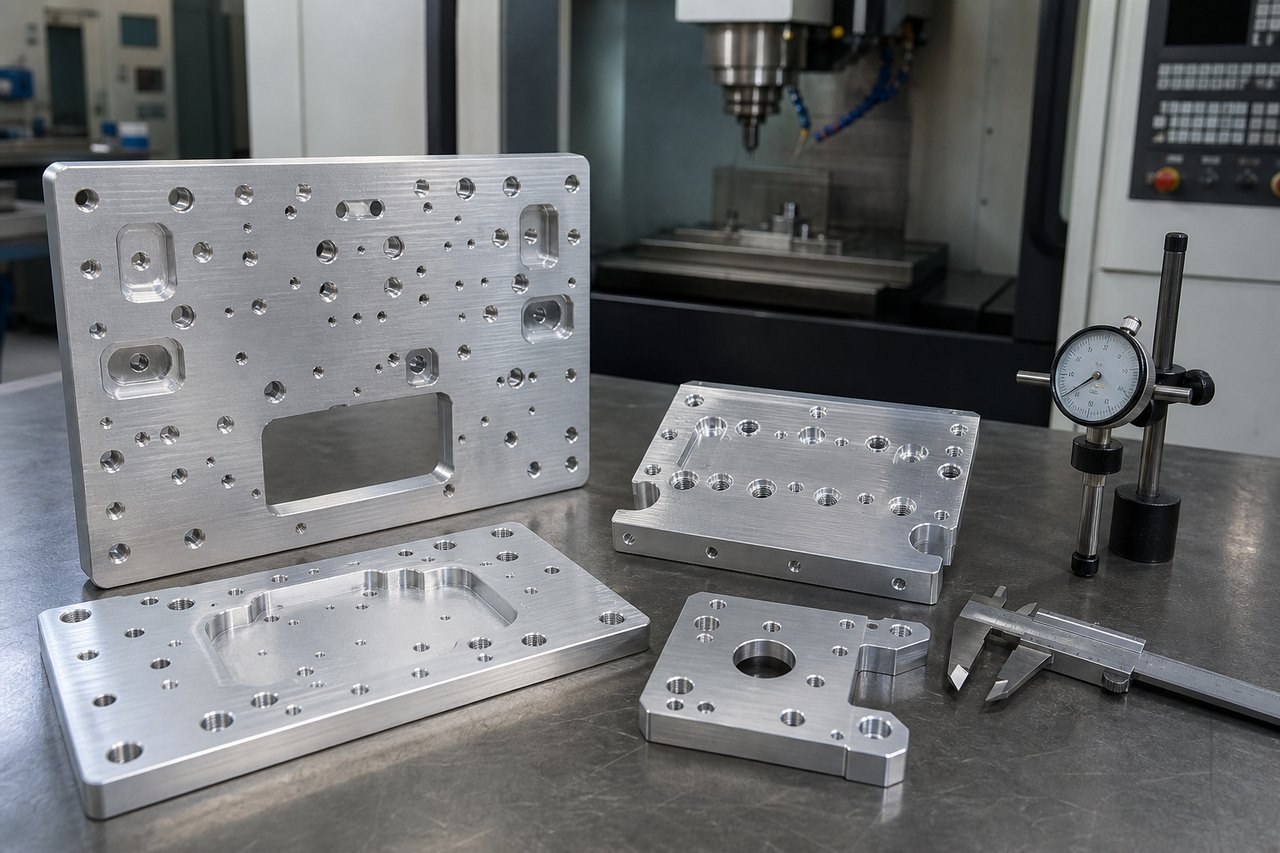

• 铝合金安装板成品摄影：展示密集孔系、自然金属加工纹理和洁净孔口，置于干净工业工作台；不出现尺寸文字、品牌或水印；生成后压缩至小于400KB。
