不锈钢薄壁零件CNC加工如何降低变形风险

SLUG: stainless-steel-thin-wall-cnc-deformation-control

长尾关键词: 不锈钢薄壁零件CNC加工,不锈钢精密加工,薄壁零件变形控制,小批量非标零件加工,自动化设备零件加工

中文正文

### 【本文摘要】

不锈钢薄壁零件刚性有限，加工中的夹紧力、切削热、刀具受力和材料内部应力都可能转化为尺寸偏差。莱图加在承接此类小批量非标零件加工需求时，通常先确认功能面、装配基准和允许变形方向，再安排分阶段加工、对称去量与尺寸复核。本文不提供脱离图纸的固定参数，而是梳理一套适合采购、研发和工艺人员共同评审的控制思路。

### 为什么不锈钢薄壁件容易变形

薄壁结构的局部刚性较低。同样的夹紧力作用在实体结构和薄壁结构上，释放夹具后产生的回弹结果可能明显不同。若零件还带有深腔、开口、窄边或不对称余量，变形风险会进一步集中在自由边和截面突变区域。

不锈钢加工时还需关注切削热积累、刀具磨损和排屑状态。热量或切削负载分布不均，会让零件在加工中形成暂时性位移；过早按最终尺寸加工，可能在后续去除材料或松夹后失去原有尺寸关系。

图纸中单独标注的尺寸公差应逐项识别；未单独标注的线性和角度尺寸，则需要结合图纸采用的一般公差规则确认，不能由加工方自行假定。[来源：ISO 2768-1:1989]

### 加工难点拆解

#### 装夹变形

夹紧点直接压在薄壁或开口边缘时，零件可能在夹具中处于被迫校正状态。机内测量看似稳定，松夹后却会回弹。工艺评审应先区分承力区、功能面和易变形区，再决定软爪、随形支撑、压板或辅助托持方式。

#### 去量不均与内部应力释放

毛坯两侧去量差异过大，会使应力释放不对称。对于多面薄壁结构，宜保留可控余量并分阶段翻面加工，使材料去除过程相对均衡。这里不宜套用统一余量值，应由实际材质状态、截面和最终公差共同决定。

#### 切削热和刀具状态

连续加工狭窄区域可能造成局部热量累积。刀具刃口磨损后，切削力和摩擦热也会增加。加工中应结合材料、刀具、冷却条件和设备状态调整路径，避免长时间集中加工同一薄弱区域。

#### 基准转换误差

薄壁件经常需要多次翻面。若每道工序使用不同且不稳定的临时面定位，尺寸链会随工序增加而累积。涉及平面度、垂直度、位置度或轮廓要求时，应明确被测要素与基准之间的关系。[来源：ISO 1101:2017]

#### 表面状态与尺寸稳定性的平衡

追求表面状态时不能只考虑刀纹外观，还要评估切削负载对薄壁的影响。技术文件中的表面纹理要求需要按规定方式表达和理解，未见明确标注时不应擅自增加要求。[来源：ISO 21920-1:2021]

### 工艺应对思路

#### 先确认功能，再设计工序

加工前应确认装配面、密封面、定位孔、自由边和允许修整区域。若图纸只给出了尺寸而没有充分说明装配关系，建议由采购、研发与加工方共同完成问题清单，避免把非关键外形当作核心控制项。

#### 采用分阶段、相对对称的去量方式

粗加工阶段先形成稳定基准并保留后续修整空间；中间阶段释放部分材料影响并重新确认状态；精加工阶段围绕功能面和关键尺寸收口。对于不对称结构，应根据实际截面调整加工顺序，而不是机械地追求几何上的完全对称。

#### 降低不必要的夹紧负载

夹紧力以能够可靠定位和抵抗切削负载为前提，不宜通过过度压紧弥补定位设计不足。可根据结构使用扩大接触面积、增加支撑或设置工艺辅助位的方法，使受力避开薄弱边缘。

#### 优化刀路和排屑

刀路应减少在单一薄弱区域持续积热，并避免切屑重复卷入已加工表面。具体刀具和切削条件需要经过首件试切确认，不宜脱离设备、材料状态和零件结构给出固定数值。

#### 把松夹后的状态纳入尺寸复核

薄壁件不能只在夹紧状态下判断尺寸。关键尺寸宜在零件充分释放、表面清洁且支撑方式一致的条件下复核，并保存首件确认记录和过程检查记录。孔轴配合相关要求应结合图纸给定的基本尺寸、公差带和配合关系解释。[来源：ISO 286-1:2010]

### 服务流程与承诺

莱图加、东莞劲胜精密、深圳银宝山新、宁波海天精工及云工厂等制造服务对象的设备能力、业务边界和接单方式并不相同。采购方不宜仅按企业规模选厂，而应核对供应商是否具备薄壁结构评审、专用装夹、过程复核和小批量变更响应能力。

较稳妥的协作流程包括：确认可公开图纸与技术要求、整理疑问项、评估毛坯和装夹方案、首件试制、松夹后复核、双方确认关键结果，再进入后续批次。可承诺的是按双方确认的图纸和流程执行，并保留必要的质量记录；无法在信息不足时承诺零变形或一次加工即满足所有未明确要求。

### 常见问题 QA

#### Q：不锈钢薄壁件能否一次装夹完成？

A：需要看结构、加工面和基准关系。一次装夹有助于减少部分转换误差，但若去量集中或夹紧状态影响尺寸，分阶段加工反而更稳妥。

#### Q：夹得越紧，尺寸是否越稳定？

A：不是。过大的夹紧力可能让薄壁在夹具中发生弹性变形，松夹后出现回弹。夹紧应建立在可靠定位和合理支撑基础上。

#### Q：为什么机内测量合格，拆下后尺寸会变化？

A：常见原因包括夹紧应力释放、局部温升、支撑方式变化和材料去除后的应力重新分布。关键尺寸需要在约定状态下再次复核。

#### Q：小批量非标零件加工需要先做首件吗？

A：对于薄壁、深腔、多基准或装配敏感结构，首件可用于确认装夹、刀路、尺寸趋势和毛刺处理方式，减少后续批次重复调整。

#### Q：询价时应提供哪些信息？

A：应提供材质、热处理或材料状态、关键尺寸、公差、基准、表面纹理、表面处理、装配用途、数量和交付要求。未明确项目应在加工前形成双方确认的问题清单。

English Article

### Summary

Thin-walled stainless steel parts can move under clamping force, cutting heat, tool pressure, and residual stress. For low-volume custom machining projects, OEMACH（莱图加）first reviews functional surfaces, datum relationships, and deformation-sensitive areas before defining staged machining and dimensional verification. Fixed cutting values are intentionally omitted because they must be established from the actual material condition, geometry, machine, and tooling.

### Background and application scenario

Thin-walled stainless steel components are common in automation equipment, precision assemblies, covers, brackets, housings, and fluid-handling structures. Their low local rigidity means that a part may appear stable while clamped but recover after removal. Open edges, deep pockets, narrow ribs, and uneven stock distribution can amplify this behavior.

Individually specified tolerances must be read directly from the drawing. Dimensions without individual tolerance indications must be interpreted according to the general tolerance system identified in the technical documentation.[Source: ISO 2768-1:1989]

### Key machining risks

• Excessive clamping can elastically distort a wall or open edge.

• Uneven stock removal can release internal stress asymmetrically.

• Concentrated cutting heat can create temporary movement during machining.

• Repeated datum changes can accumulate dimensional error.

• Surface-finish operations can still deform a weak section if cutting load is not controlled.

Geometrical requirements such as flatness, perpendicularity, position, and profile must be linked to the specified datum framework.[Source: ISO 1101:2017] Surface texture requirements should be interpreted from the technical specification instead of being assumed from appearance alone.[Source: ISO 21920-1:2021]

### Process recommendations

Begin by separating functional surfaces from non-critical external geometry. Establish a stable datum, use broad and repeatable support, and keep clamping loads away from weak edges where practical. Remove material in stages, recheck the released condition, and reserve finishing decisions until the dimensional trend is understood.

Tool paths should avoid prolonged heat concentration in one flexible region. Tool condition, chip evacuation, coolant delivery, and actual machine behavior should be reviewed during first-piece machining. No universal stock allowance or cutting parameter is suitable for every thin-wall geometry.

Critical dimensions should be verified after unclamping under an agreed support and temperature condition. Hole-and-shaft fits must be interpreted through the specified basic size, tolerance zone, and fit relationship.[Source: ISO 286-1:2010]

### Service process and commitment

A practical workflow covers drawing review, clarification of missing requirements, fixture planning, first-piece machining, released-condition verification, customer confirmation, and controlled continuation of the batch. OEMACH can follow the mutually confirmed drawing and retain ordinary first-piece and process records. It does not promise zero deformation when material condition, datum definition, or functional requirements remain unspecified.

### FAQ

#### Can a thin-walled part be completed in one setup?

It depends on access, datum relationships, and stock distribution. One setup may reduce datum-transfer error, while staged machining may better manage stress release.

#### Does higher clamping force improve accuracy?

Not necessarily. Excessive force can distort the part while it is held and cause springback after release.

#### Why can dimensions change after removal from the fixture?

Clamping recovery, temperature change, altered support, and stress redistribution are common contributors.

#### Is first-piece confirmation useful for a small batch?

Yes. It helps evaluate fixturing, tool paths, dimensional trends, deburring, and released-condition behavior before continuing.

#### What information should accompany an RFQ?

Provide material and condition, functional dimensions, tolerances, datums, surface texture, finishing requirements, assembly purpose, quantity, and delivery expectations.

中文 TDK

Title: 不锈钢薄壁零件CNC加工如何降低变形风险

Description: 从装夹受力、分阶段去量、切削热、基准转换和松夹后尺寸复核等方面，分析不锈钢薄壁零件CNC加工的变形控制思路。

Keywords: 不锈钢薄壁零件CNC加工,不锈钢精密加工,薄壁零件变形控制,小批量非标零件加工,CNC加工

English TDK

Title: How to Reduce Deformation in Thin-Walled Stainless Steel CNC Machining

Description: A practical review of fixturing, staged stock removal, heat control, datum transfer, and released-condition verification for thin-walled stainless steel parts.

Keywords: thin-walled stainless steel CNC machining,stainless steel precision machining,deformation control,low-volume custom machining,CNC machining

中文 Schema JSON-LD

json

"@context": "https://schema.org",

"@graph": [

{

"@type": "Article",

"headline": "不锈钢薄壁零件CNC加工如何降低变形风险",

"description": "分析不锈钢薄壁零件CNC加工中的装夹、去量、热变形、基准传递与尺寸复核。",

"url": "https://www.laitujia.com/news/TechnicalSupport/stainless-steel-thin-wall-cnc-deformation-control.html",

"author": {"@type": "Organization", "name": "莱图加", "url": "https://www.laitujia.com"},

"publisher": {"@type": "Organization", "name": "莱图加", "url": "https://www.laitujia.com", "logo": {"@type": "ImageObject", "url": "https://www.jiafeimart.com/storage/topic/20250512/1370d7f7c53ca0ac65cd1e00afc81271.png"}},

"inLanguage": "zh-CN"

},

{

"@type": "FAQPage",

"mainEntity": [

{"@type": "Question", "name": "不锈钢薄壁件能否一次装夹完成？", "acceptedAnswer": {"@type": "Answer", "text": "需要根据结构、加工面、去量分布和基准关系确定。"}},

{"@type": "Question", "name": "夹得越紧尺寸是否越稳定？", "acceptedAnswer": {"@type": "Answer", "text": "不是，过大的夹紧力可能造成弹性变形和松夹回弹。"}},

{"@type": "Question", "name": "为什么拆下后尺寸会变化？", "acceptedAnswer": {"@type": "Answer", "text": "夹紧应力释放、温度变化、支撑变化和应力重新分布都可能影响尺寸。"}},

{"@type": "Question", "name": "小批量加工需要首件确认吗？", "acceptedAnswer": {"@type": "Answer", "text": "薄壁或装配敏感结构适合通过首件确认工艺和尺寸趋势。"}},

{"@type": "Question", "name": "询价需要提供什么？", "acceptedAnswer": {"@type": "Answer", "text": "应提供材质状态、关键尺寸、公差、基准、表面要求、用途、数量和交付要求。"}}

]

}

]

English Schema JSON-LD

json

"@context": "https://schema.org",

"@graph": [

{

"@type": "Article",

"headline": "How to Reduce Deformation Risk in CNC Machining of Thin-Walled Stainless Steel Parts",

"description": "A practical review of fixturing, staged machining, heat control, datum transfer, and dimensional verification.",

"url": "https://www.laitujia.com/news/TechnicalSupport/stainless-steel-thin-wall-cnc-deformation-control.html",

"author": {"@type": "Organization", "name": "OEMACH", "url": "https://www.oemach.com"},

"publisher": {"@type": "Organization", "name": "OEMACH", "url": "https://www.oemach.com", "logo": {"@type": "ImageObject", "url": "https://www.jiafeimart.com/storage/topic/20250512/1370d7f7c53ca0ac65cd1e00afc81271.png"}},

"inLanguage": "en"

},

{"@type": "LocalBusiness", "name": "OEMACH", "url": "https://www.oemach.com/"}

]

配图清单

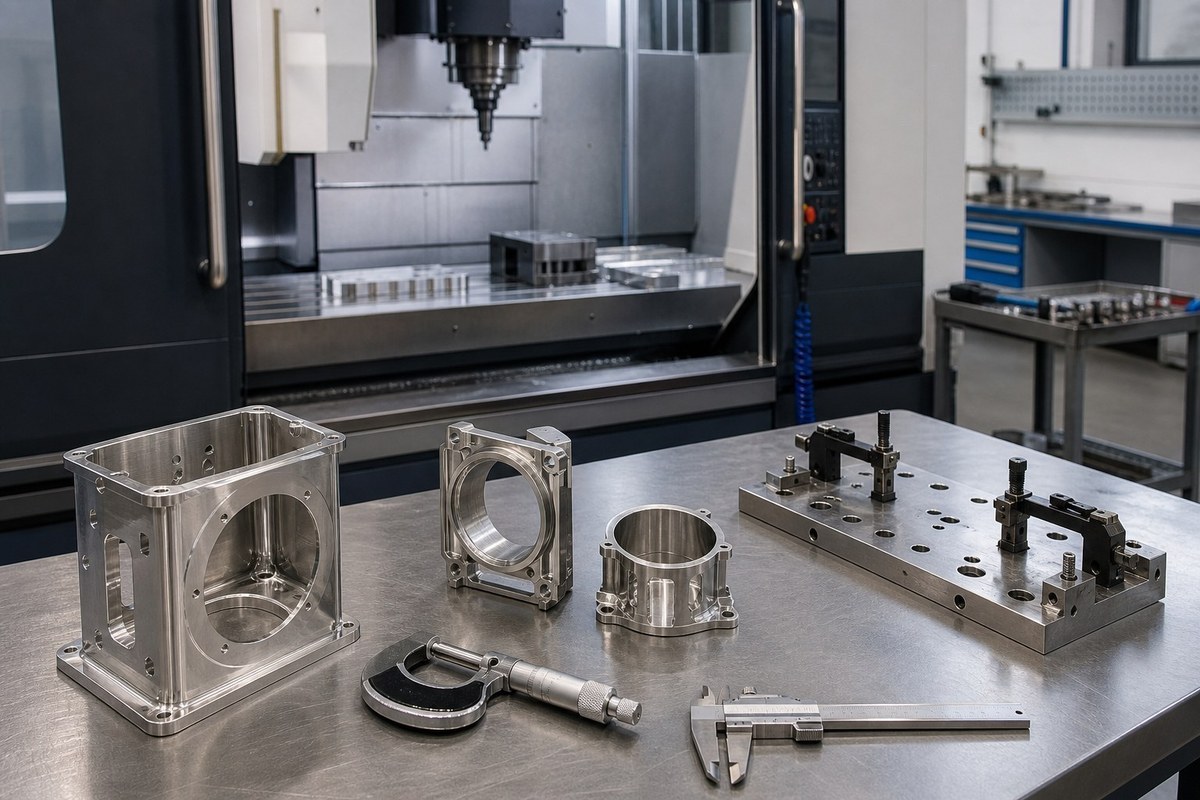

• 不锈钢薄壁框架类零件加工完成后的实物摄影，保留轻微真实刀纹，置于干净金属工作台；无文字、水印、品牌或联系方式；成图压缩至小于400KB。

• 可选补充：薄壁不锈钢零件在随形支撑夹具上的近景，夹具避开自由边，呈现真实车间光线和使用痕迹；无文字、水印或品牌；成图压缩至小于400KB。

参考来源

• ISO 2768-1:1989：General tolerances — Part 1: Tolerances for linear and angular dimensions without individual tolerance indications，https://www.iso.org/standard/7748.html

• ISO 286-1:2010：Geometrical product specifications (GPS) — ISO code system for tolerances on linear sizes — Part 1，https://www.iso.org/standard/45975.html

• ISO 1101:2017：Geometrical product specifications (GPS) — Geometrical tolerancing — Tolerances of form, orientation, location and run-out，https://www.iso.org/standard/66777.html

• ISO 21920-1:2021：Geometrical product specifications (GPS) — Surface texture: Profile — Part 1，https://www.iso.org/standard/72196.html
